Front Suspension

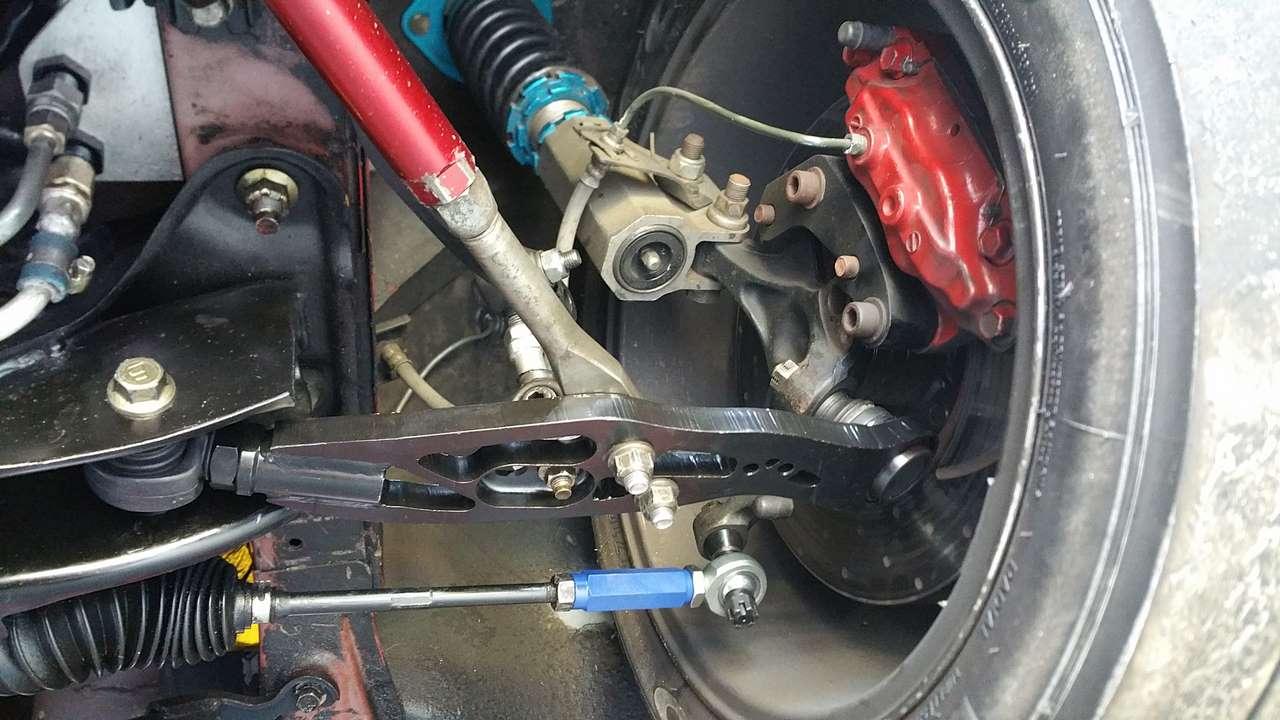

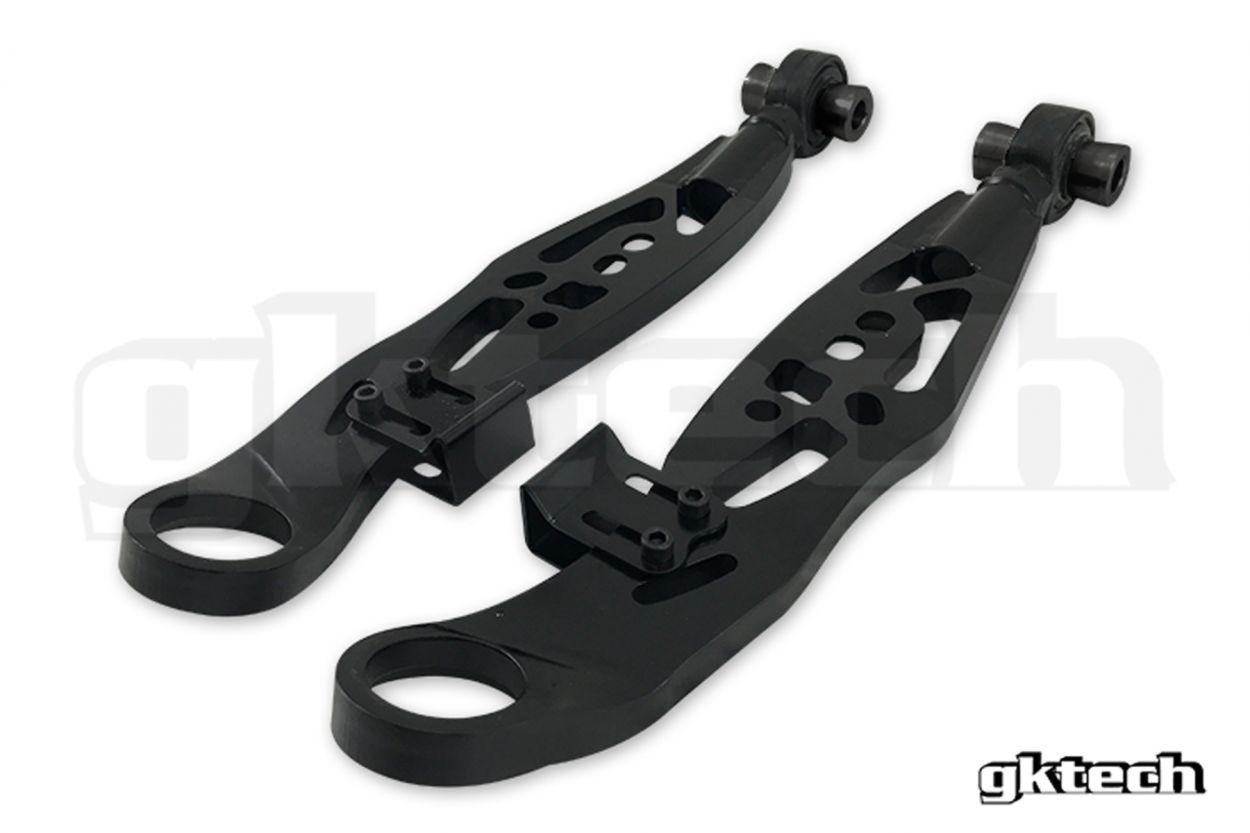

Feb 2018: In an effort to make the car more stable I replaced the gktech V1 lower conroll arms with the newer V2 arms. I used the shorter +20mm > +45mm versions. This increased the front track by about 50mm but introduced a roll center issue that was easilly fixed buy using a set of Hardrace front roll center ball joints rather than OEM ball joints. Naturally the tie rod ends then had to be lowered to correct bumpsteer.  The caster plates on the strut tops are now sitting close to the factory postion and I stil have 4º neg camber.  The extra 50mm of track cleance made the front wheel fill the dmax +25mm front guards nicely - Round 1 of the Sprint series on "K" track at Morgan Park would be the testing ground and the car was a lot more stable when cornering with less understeer as well.

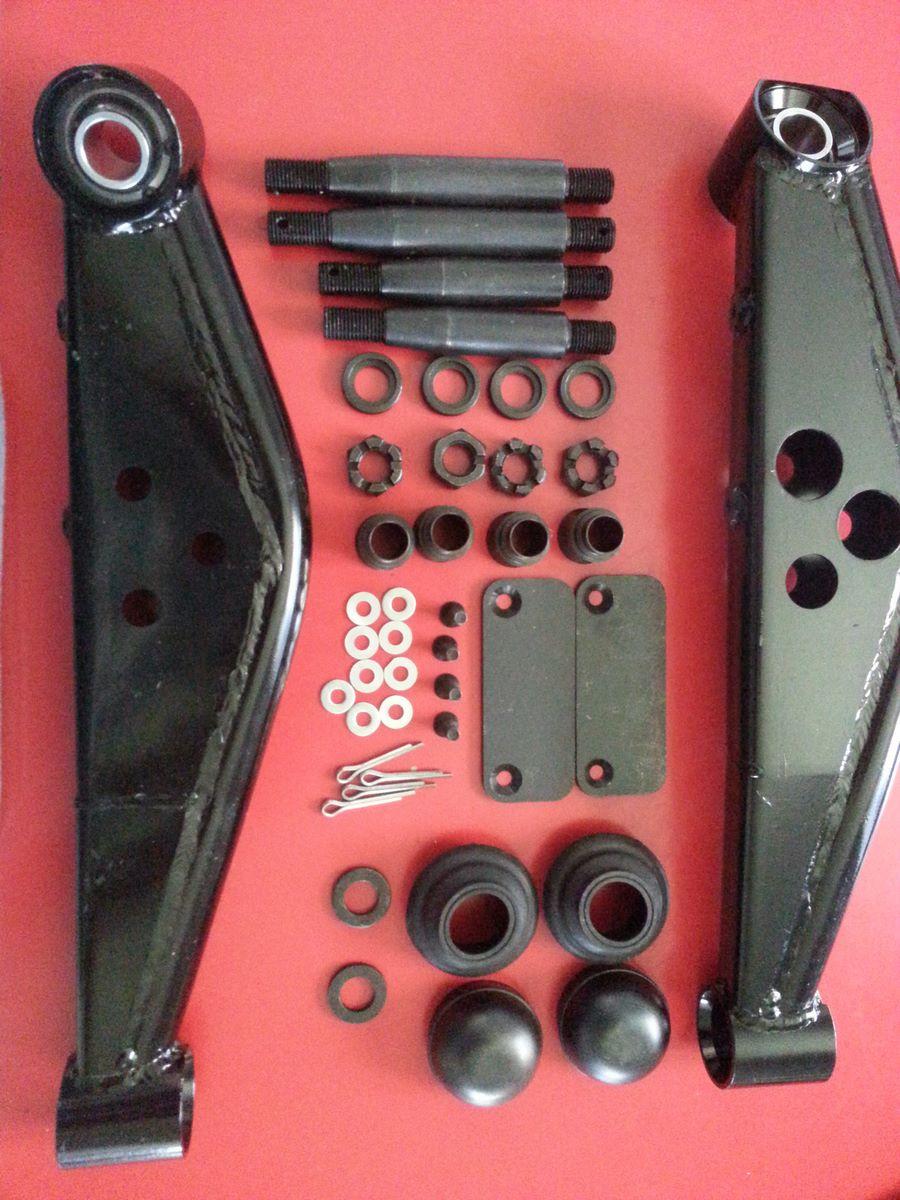

  • Click to enlarge image 2014-10-08 10.51.47- 600.jpg

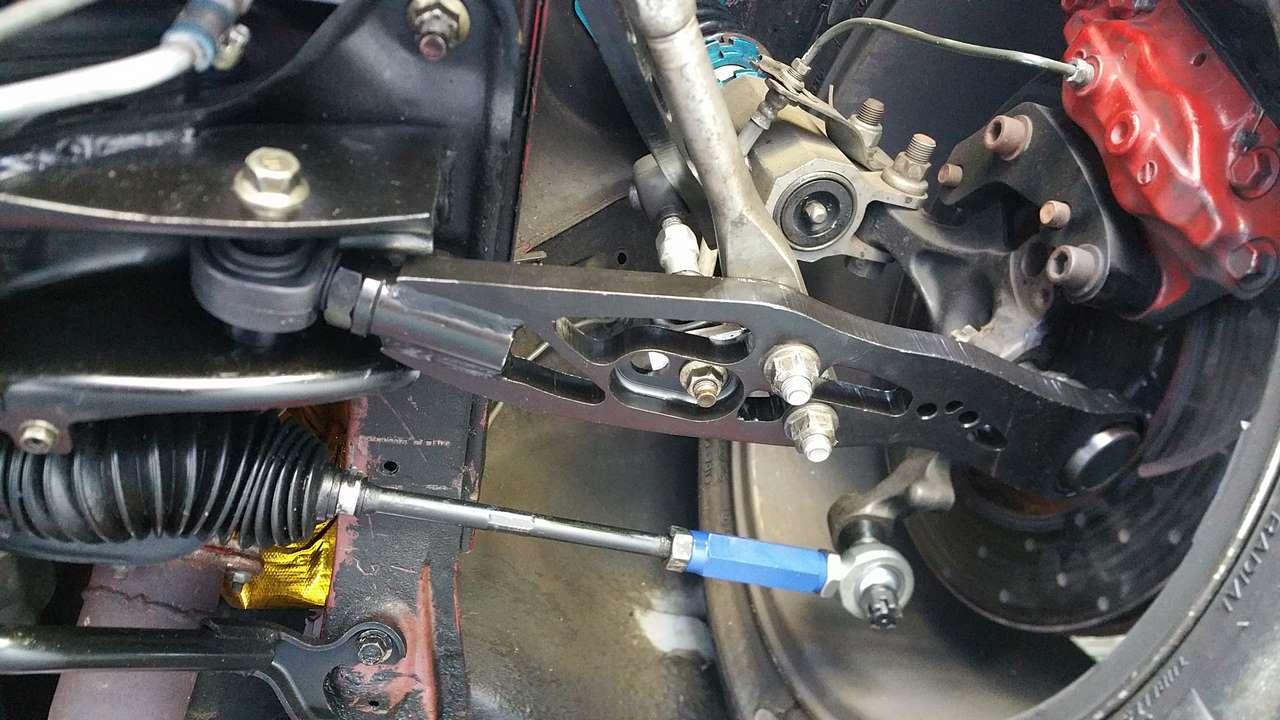

  • Click to enlarge image 2019-02-18 14.21.11_60.jpg
  • Click to enlarge image 2019-02-18 14.21.27_60.jpg
  • Click to enlarge image img_0452_black.jpg
  •

Rear Subrafme

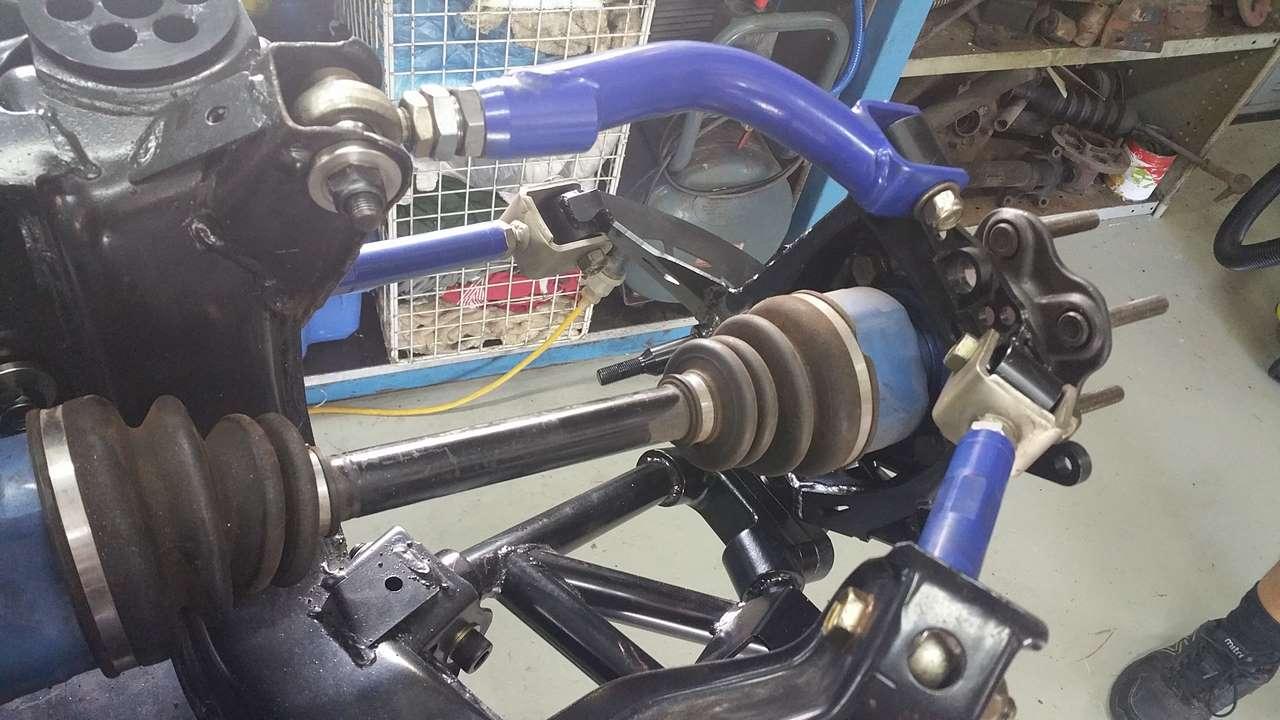

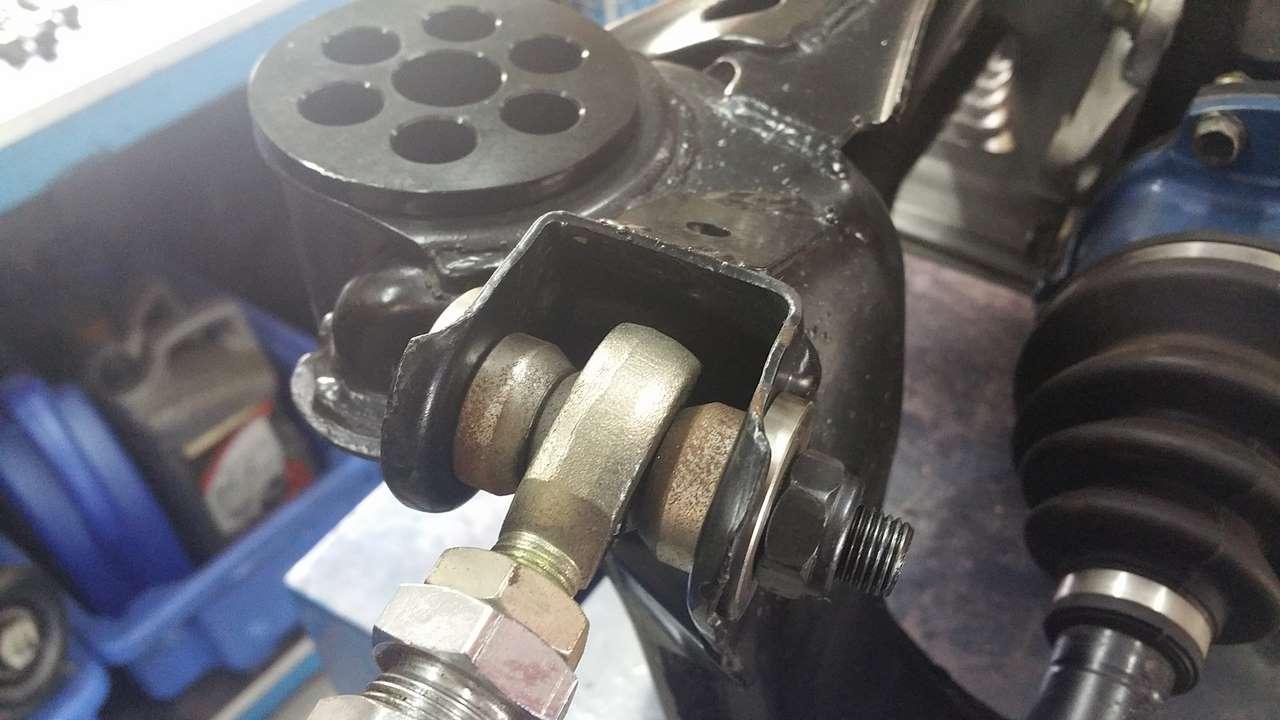

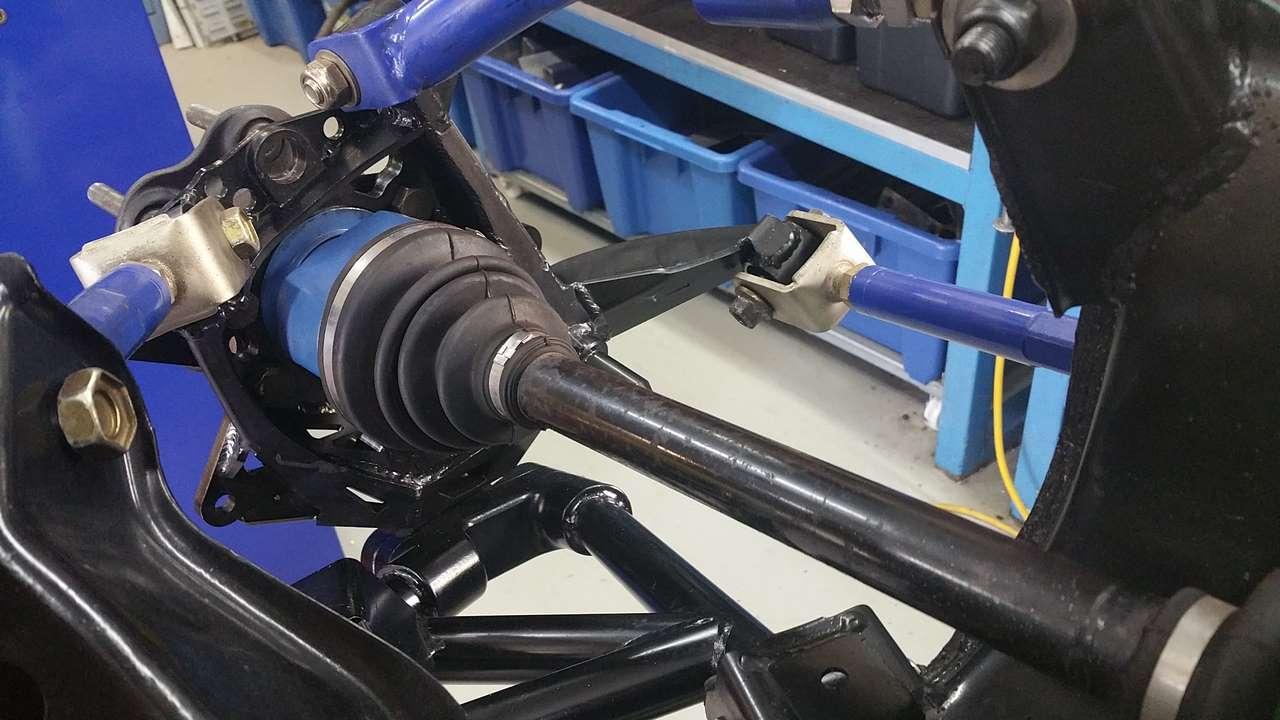

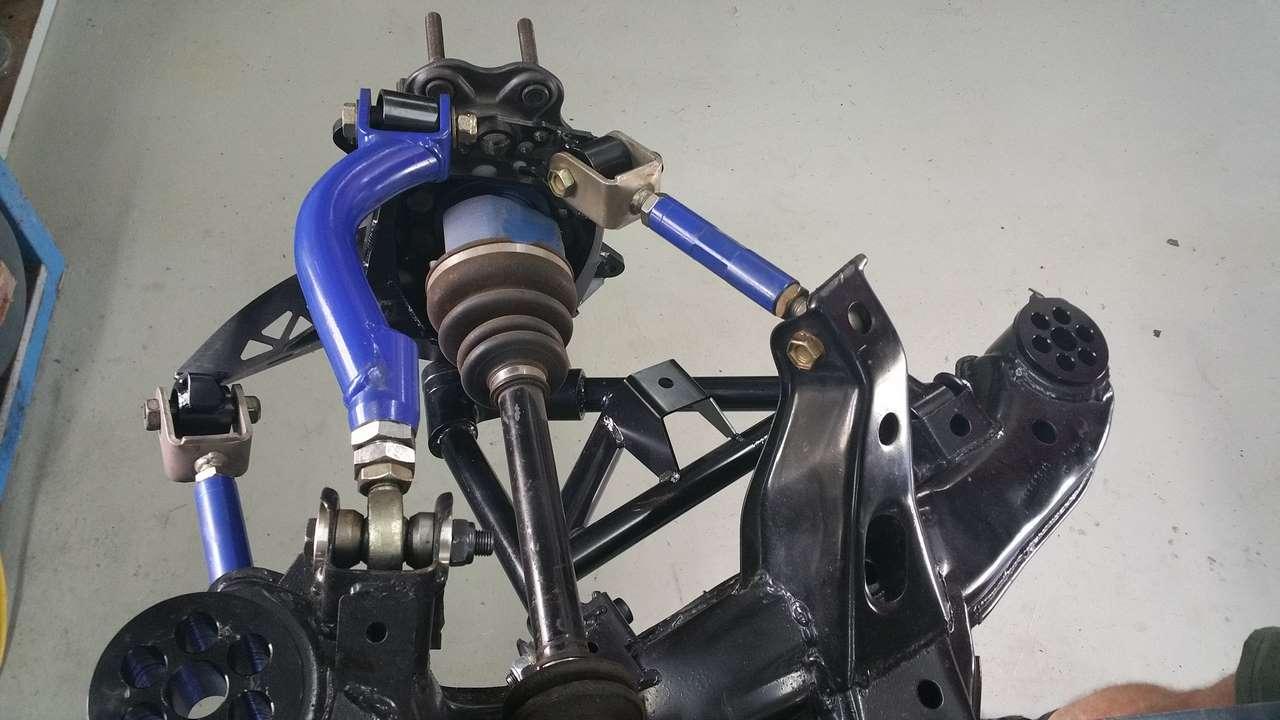

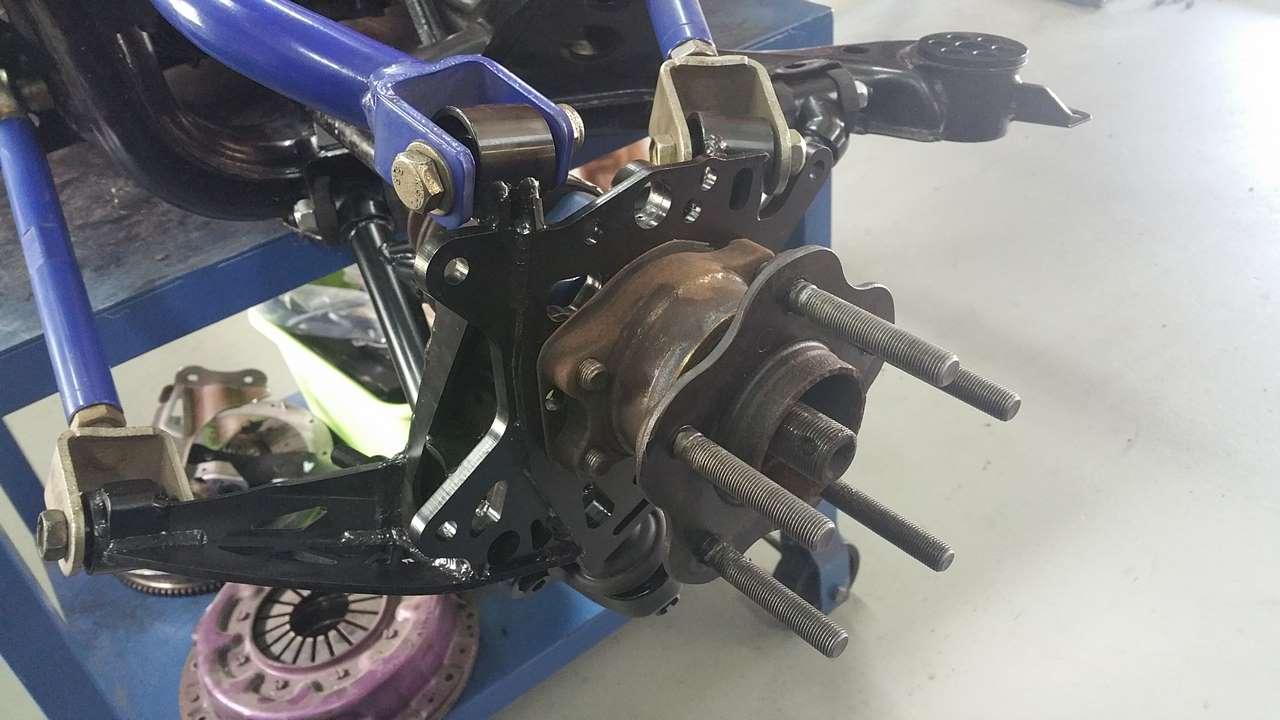

Jan-2018: The Rear Subframe has been replaced with one incorporating some reinforcing plates, Solid rear subframe bushes, Solid diff Mount Bushes, Fabricated rear knuckles, Excentric Lockout kit

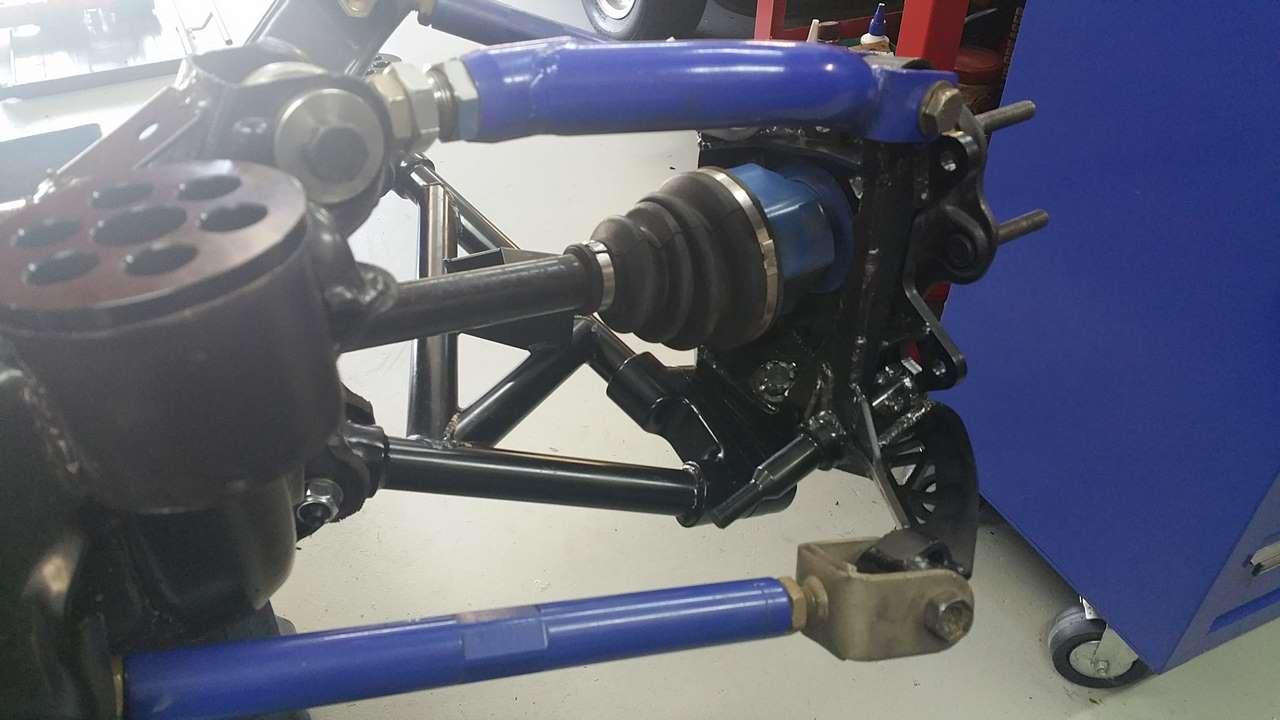

  • Click to enlarge image A_2018-01-09 10.23.55_1200.jpg
  • Click to enlarge image A_2018-01-09 10.24.19_1200.jpg

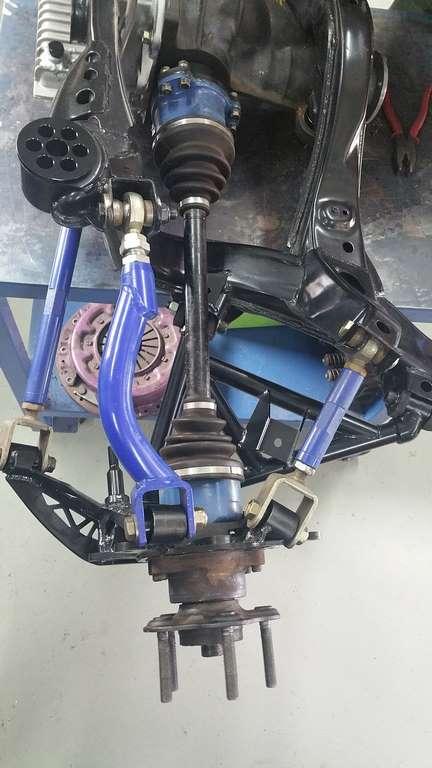

  • Click to enlarge image A_2018-01-09 10.24.33_1200.jpg
  • Click to enlarge image A_2018-01-09 10.24.53_1200.jpg
  • Click to enlarge image A_2018-01-09 10.25.06_1200.jpg
  • Click to enlarge image A_2018-01-09 10.25.42_1200.jpg
  • Click to enlarge image A_2018-01-09 10.26.03_1200.jpg

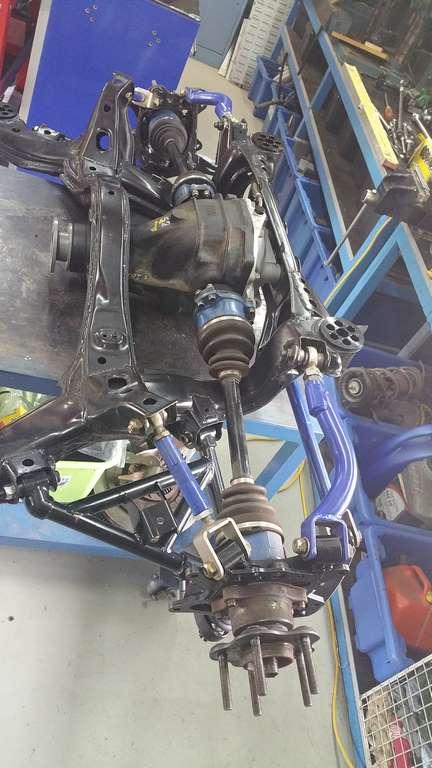

  • Click to enlarge image A_2018-01-09 10.26.18_1200.jpg
  •

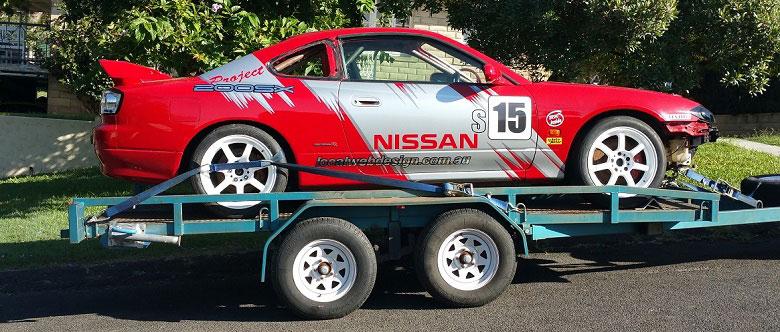

White Wheels

Swapped the Silver Gram Lights for a set of White Gram Lights. These are half an inch wider both front and rear than the silver wheels which were 17x7½x+30 on the front and 17x8½x+40 on the rear.

white wheels

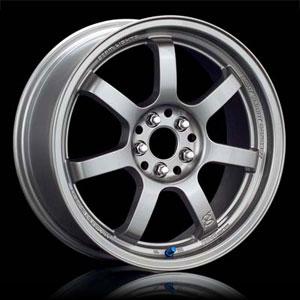

Wheels and Tyres (Silver)

 gramlights 57s

Front Wheels

Make : Rays Gram Lights 57S

Size : 17 x 7½ JJ

Offset  : +30

Tyres : Dunlop



Rear Wheels

Make : Rays Gram Lights 57S

Size : 17 x 8½ JJ

Offset  : +40

Tyres : Dunlop

Wheels and Tyres (White)

 gramlights 57s

Front Wheels

Make : Rays Gram Lights 57S

Size : 17 x 8 JJ

Offset  : +30

Tyres : Dunlop



Rear Wheels

Make : Rays Gram Lights 57S

Size : 17 x 9 JJ

Offset  : +38

Tyres : Dunlop

  • Nissan SR20 Engine
  • Gear Box and Diff
  • Nissan S15 Body Work
  • Nissan S15 Interior
  • Nissan S15 Brakes
  • Suspension & Steering
  • Fuel System

sr20-inside

Make : Nissan
Model : 200SX S15
Engine : SR20 Turbo
Turbo : Garrett GT28
Fuel : E85 (only)
Injectors : BOSCH EV14 980cc
Gearbox : 6 Speed Manual
Diff : Kaas 2 way 4.3:1
Rims Rear: 17x9 Gram Light 57s
Rims Front: 17x8 Gram Light 57s
Tyres Rear : Dunlop 245/40zr17
Tyres Front : Dunlop 245/40zr17
