Rear Brakes

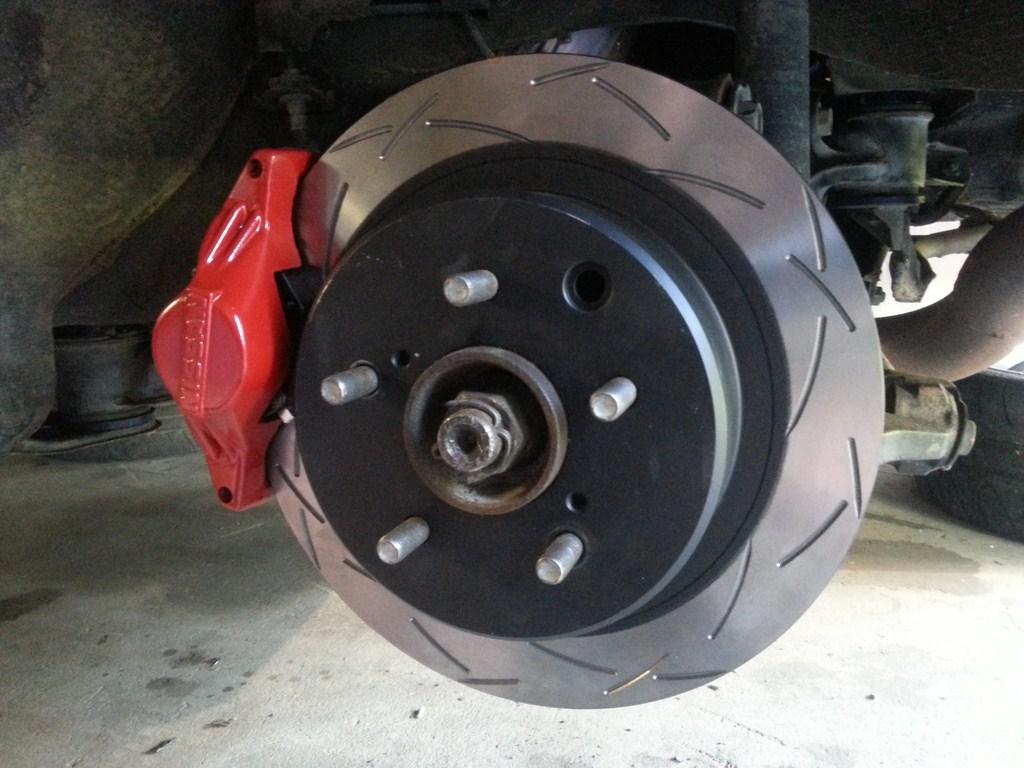

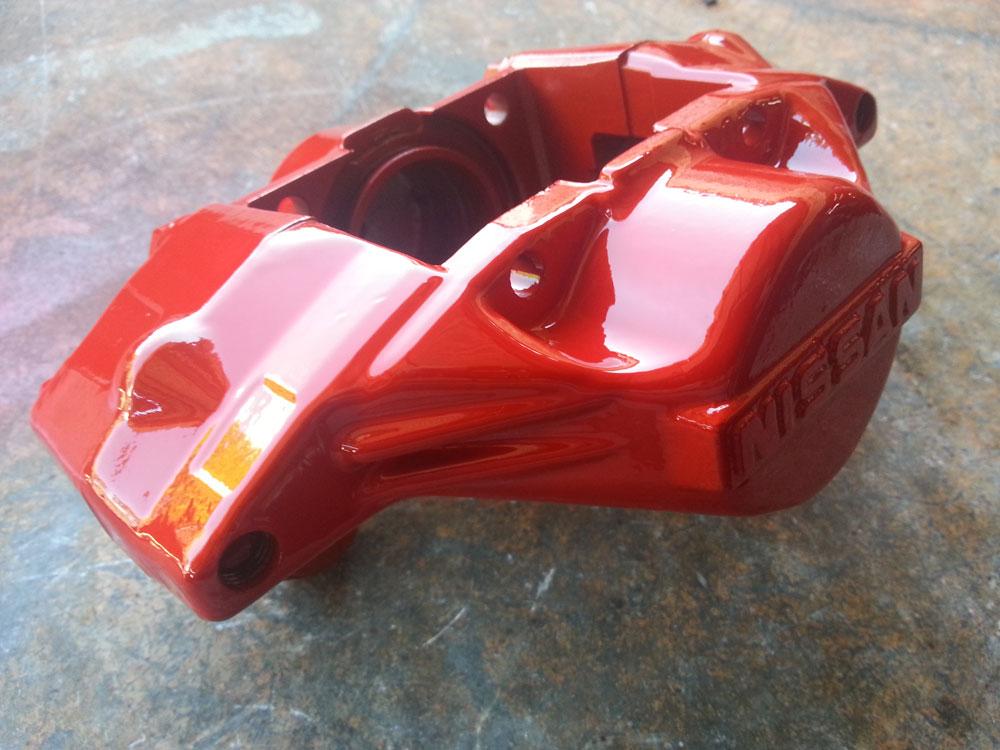

Jul -2012 The Nissan 200sx S15 single piston brake caliper & solid disk rotor rear brakes have been replaced with Nissan R33 GTST Skyline brake calipers and disk rotors. The Skyline has larger diameter ventilated disk rotors and 2 piston calipers.

Unfortunately the Skyline uses a small internal drum brake for a hand brake. I have decided to go with in line hydraulic hand brake rather than mess around with drum brakes and hand brake cables

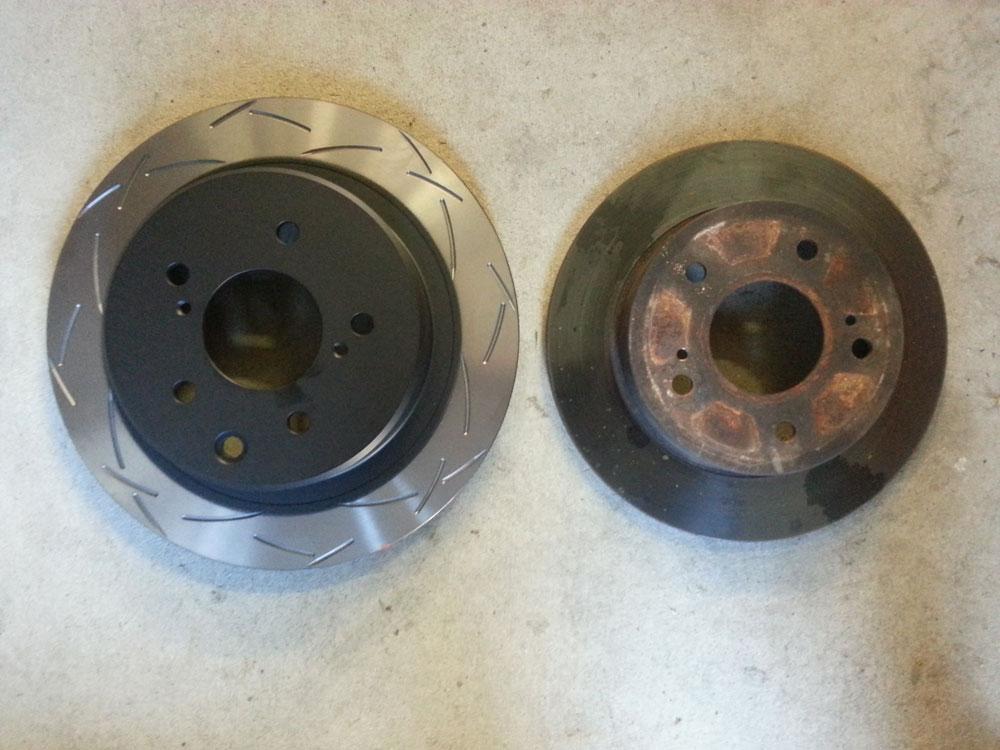

  Brake Rotor
Part Number
Rotor
Diameter
Rotor
Thickness
Caliper
Type
Disk Pad
Part Number

Original Brakes

(Nissan 200SX S15)

RDA906  258 mm 9 mm Single

QFM Performance

QDB 325

Replacement

(Skyline R33 GTST)

DBA 4908S

4000 Series T3

297 mm 18 mm Twin

QFM Performance

QDB 1220
